Mô Đun Rơ Le 2 Kênh 5v 5v Cho Arduino
2 Đánh Giá
16 Đã Bán
33
20.900 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ năm 08/04/2021 lúc 02:09 CH

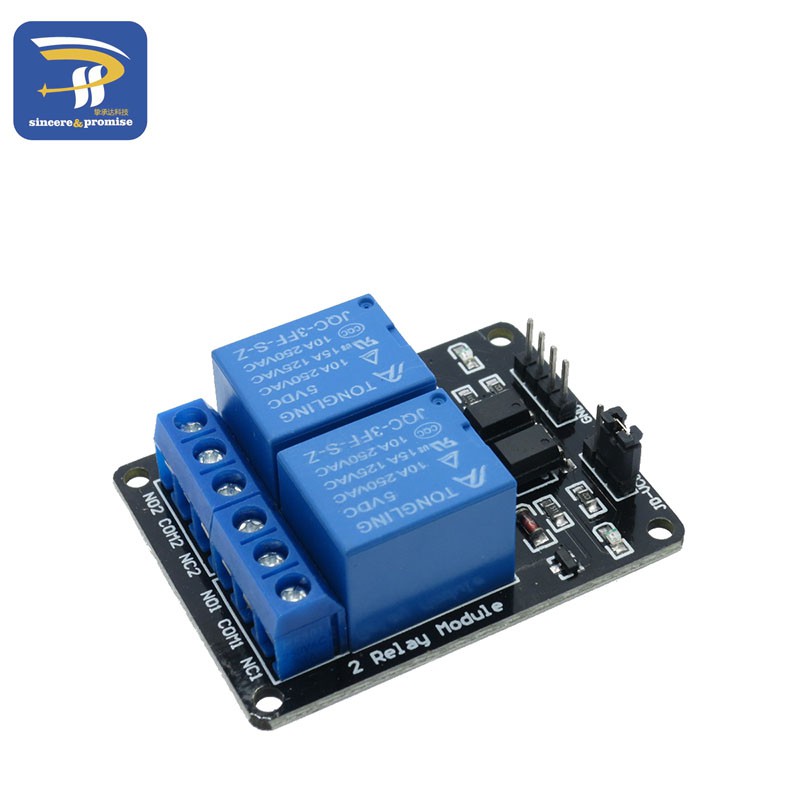

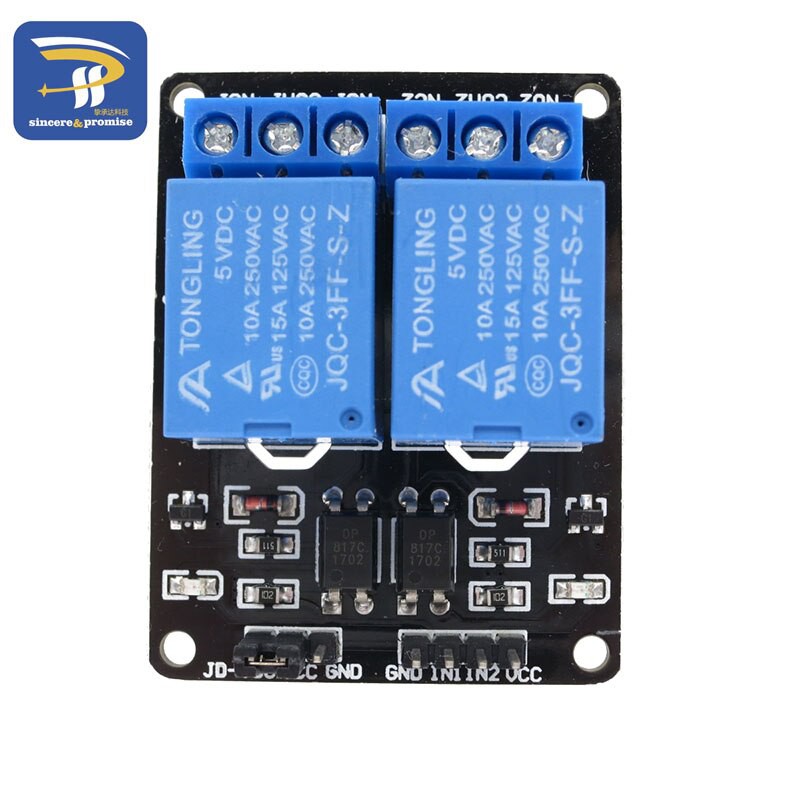

2 channel relay module relay expansion board 5V low level triggered 2-way relay module for arduino
Module Parameters:
1 Dimensions: 50.5mm (length) * 38.5mm (W) * 18.5 (H)
2 Weight:. 31g
-PCB Color: Black
4 board four weeks with four screws holes, hole diameter 3.1mm, easy to install and fixed
5 relay of high quality loose music relays SPDT. A common terminal, a normally open, one normally closed terminal
6 optocoupler isolation, good anti-jamming
7 low pull, high release. Energisation status indicator light, release status LED is off
-VCC of system power, JD_VCC relay power. You can plug in jumpers
Electrical parameters:
Supply voltage: 5VDC, 12VDC
Current: more than 100mA
Load: 250V 10A AC or 30V 10A DC
Wiring:
VCC: positive power supply system
GND: System power negative
IN1 - IN2: relay control ports
Module Parameters:
1 Dimensions: 50.5mm (length) * 38.5mm (W) * 18.5 (H)
2 Weight:. 31g
-PCB Color: Black
4 board four weeks with four screws holes, hole diameter 3.1mm, easy to install and fixed
5 relay of high quality loose music relays SPDT. A common terminal, a normally open, one normally closed terminal
6 optocoupler isolation, good anti-jamming
7 low pull, high release. Energisation status indicator light, release status LED is off
-VCC of system power, JD_VCC relay power. You can plug in jumpers
Electrical parameters:
Supply voltage: 5VDC, 12VDC
Current: more than 100mA
Load: 250V 10A AC or 30V 10A DC
Wiring:
VCC: positive power supply system
GND: System power negative
IN1 - IN2: relay control ports
