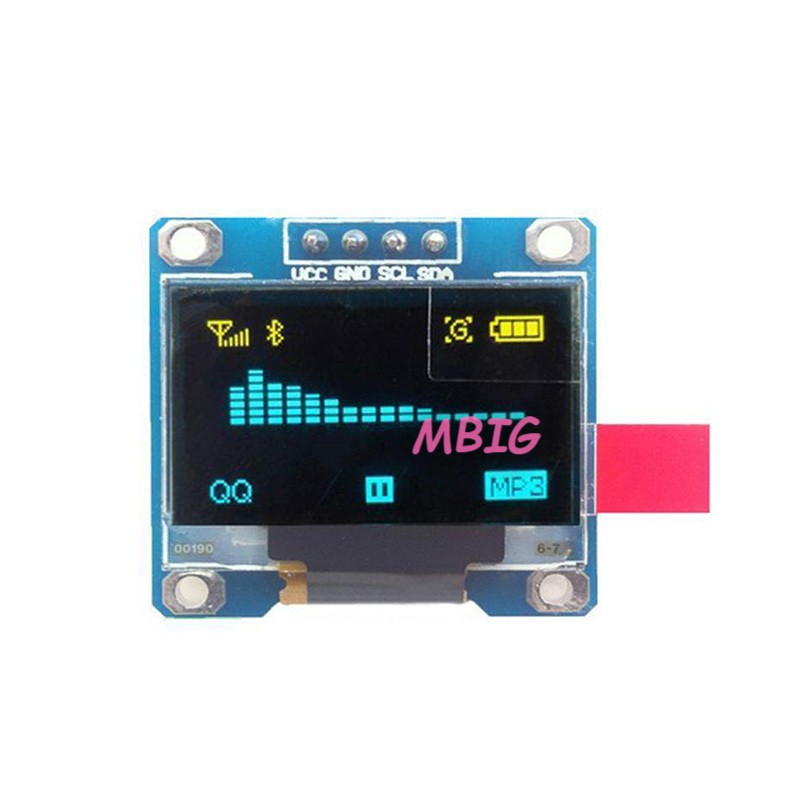

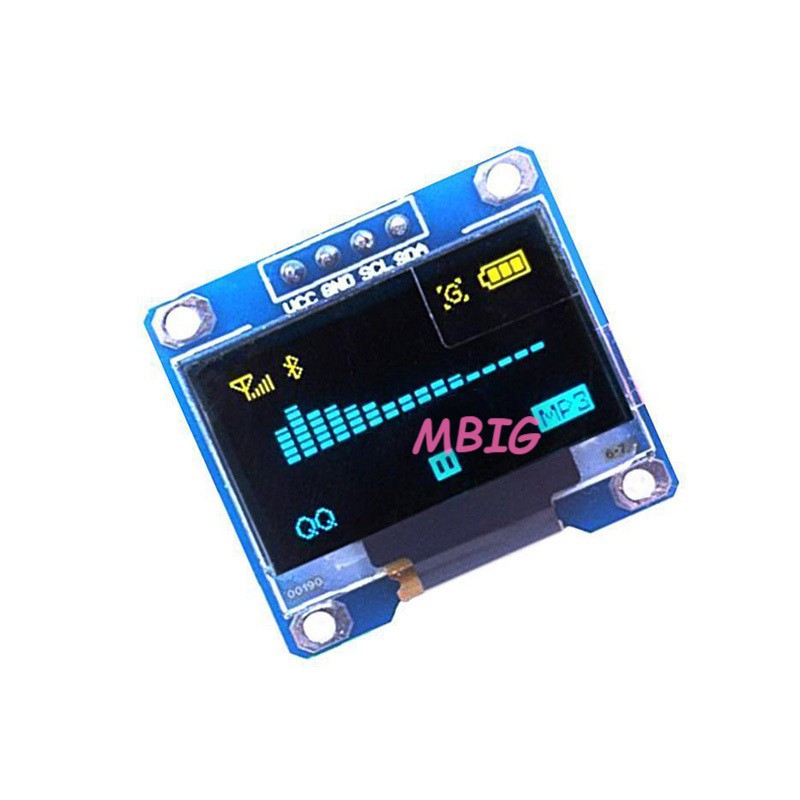

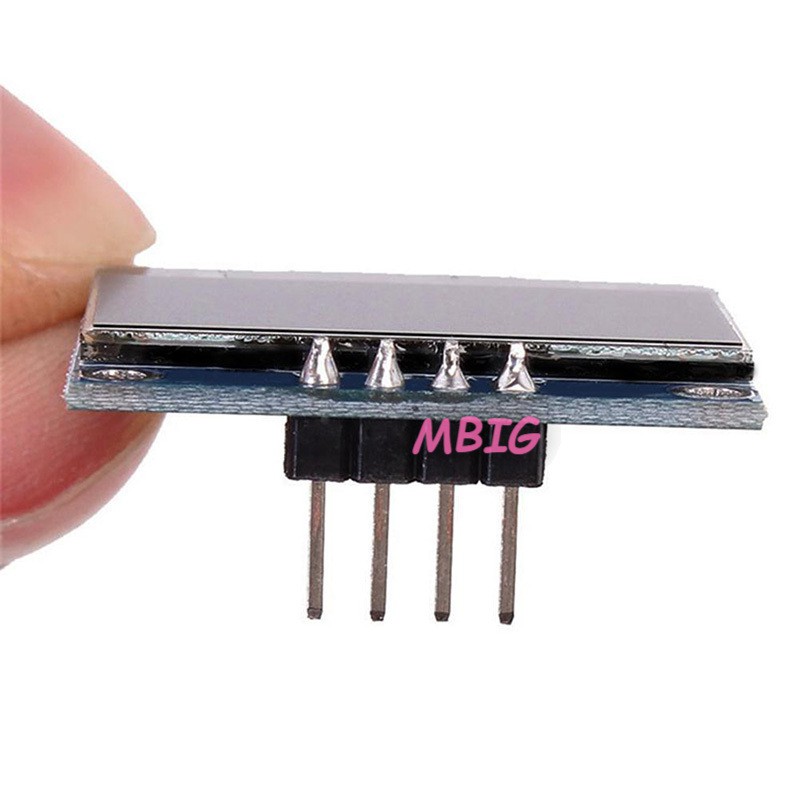

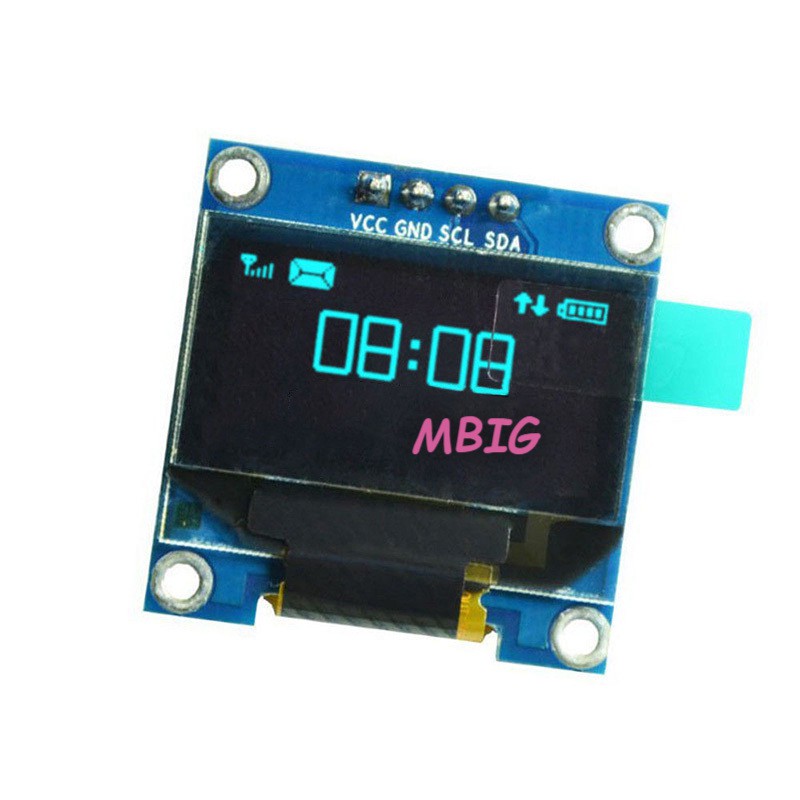

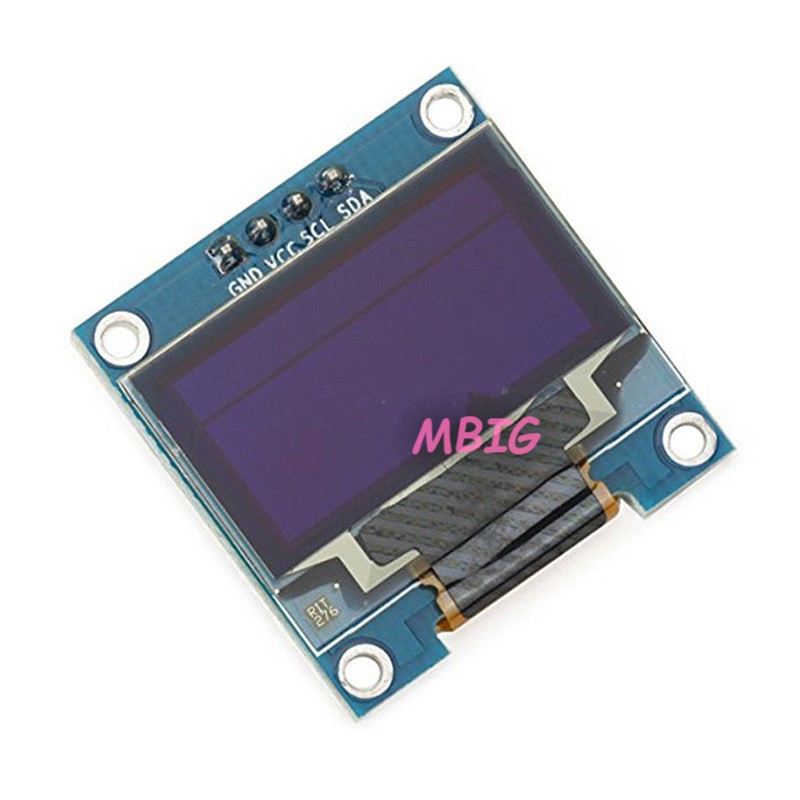

Mô đun màn hình LED LCD OLED màu xanh dương 0.96inch I2C IIC Serial 128x64 dành cho mạch Arduino
3 Đánh Giá
8 Đã Bán
160
73.613 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ năm 26/03/2020 lúc 10:20 SA
Welcome to Mbig.
Our product will give you a big profit, here you can buy high quality goods and get best service.
Follow our store will get special discount!
Enjoy your shopping time!!
Decription:
Feature:
128 x 64 LED display module for Arduino, supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ~ 70 degree Celsius
Character Colors: Blue(as pictures show)
Drive Duty: 1/64 Duty
High resolution: 128 x 64
Panel Dimensions: 26.70 x 19.26 x 1.85mm/1.03 x 0.76 x 0.07 inch(approx)
Active Area: 21.74 x 11.2mm /0.86 x 0.44 inch(approx)
Driver IC: SSD1306
Included:
1 x 128x64 Blue LED display module
Our product will give you a big profit, here you can buy high quality goods and get best service.
Follow our store will get special discount!
Enjoy your shopping time!!
Decription:
Feature:
128 x 64 LED display module for Arduino, supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ~ 70 degree Celsius
Character Colors: Blue(as pictures show)
Drive Duty: 1/64 Duty
High resolution: 128 x 64
Panel Dimensions: 26.70 x 19.26 x 1.85mm/1.03 x 0.76 x 0.07 inch(approx)
Active Area: 21.74 x 11.2mm /0.86 x 0.44 inch(approx)
Driver IC: SSD1306
Included:
1 x 128x64 Blue LED display module
