Đầu Nối Chuyển Đổi Cổng Rs232 Sang Rs232 Chuyên Dụng
0 Đánh Giá
1 Đã Bán
32
115.365 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ sáu 02/07/2021 lúc 11:07 CH
🎉Hi~Click hashtag #snowind to Explore More Nice Items🎉

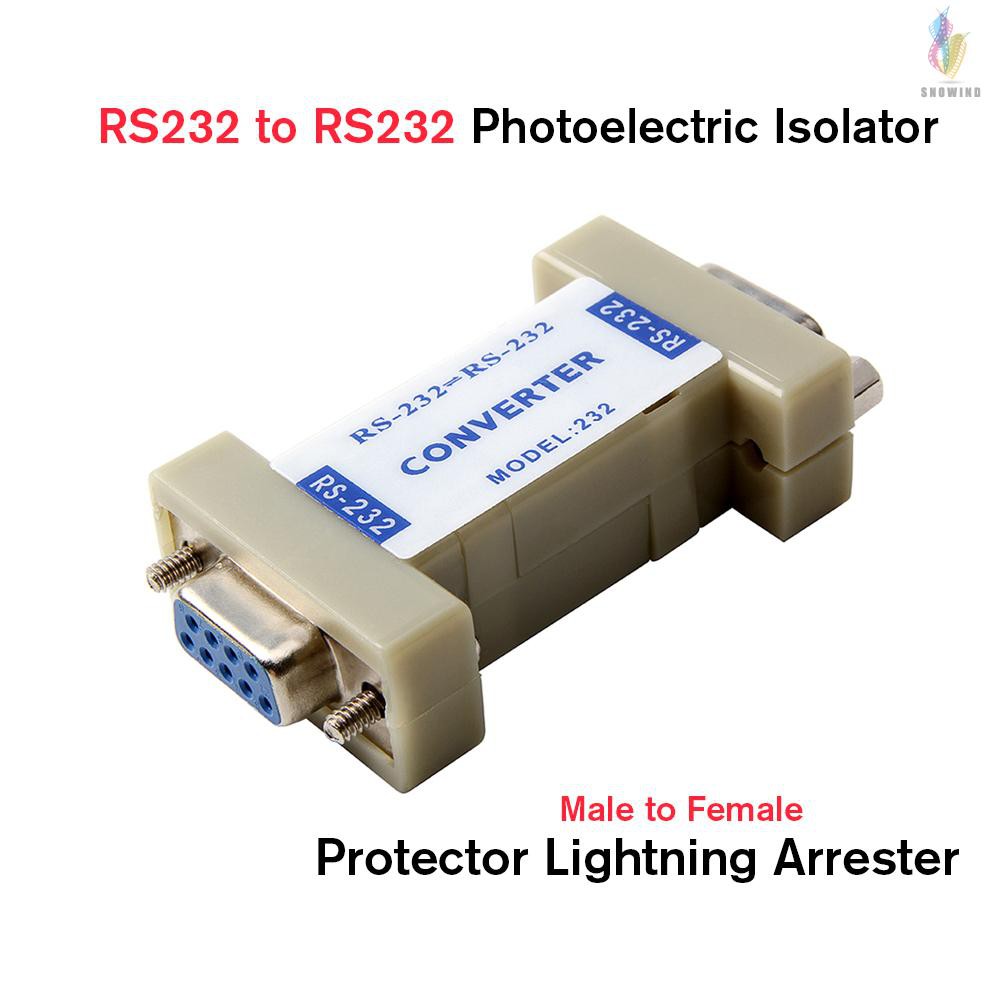

RS232 to RS232 Photoelectric Isolator Converter Serial Port Protector Lightning Arrester
Features:
Adopt photoelectric isolation technology to isolate the electrical and ground circuits of both RS-232 devices, which protects the communication equipment from the disturbance of power supply grounding circuit and surge, obviously improves the reliability and stability of the communication system.
Uses double-line balanced transmission, the original single-end transmission mode of RS-232 interface is changed, greatly enlarges the communication distance.
There are 4, 6 and 8 lines for power supply. Four lines can transmit a pair of data signals. Six lines and eight lines can also transmit a pair or two pairs of control signals.

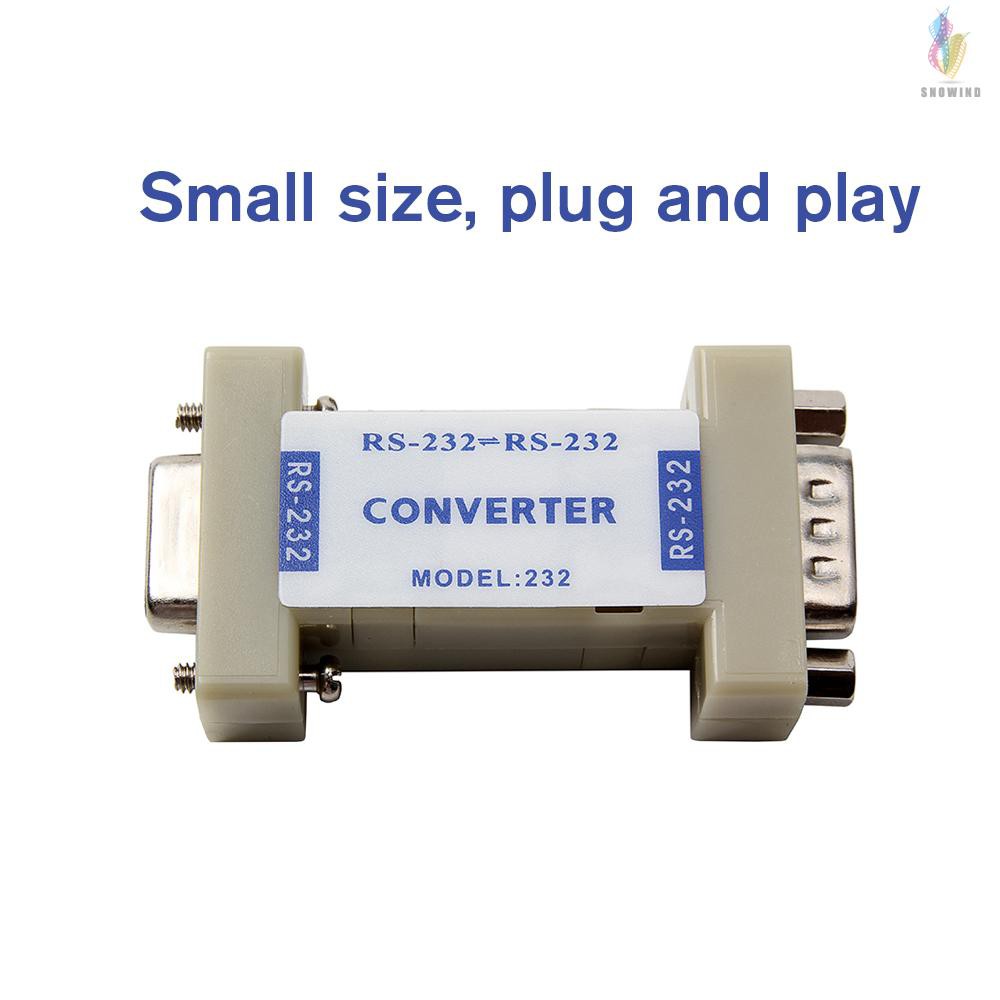

Small size, no special requirements for conductor wires, no external power supply required, plug and play, convenient to use.
Widely used in point-to-point RS-232 communication, multi-user terminal and host connection, RS-232 remote control system, program-controlled switch billing terminal and satellite receiver.
Specification:
Item name: RS232 to RS232 photoelectric isolation converter
Isolation voltage: 2500V continuous or 7500V pulse
Transfer rate: Up to 57.6kbps

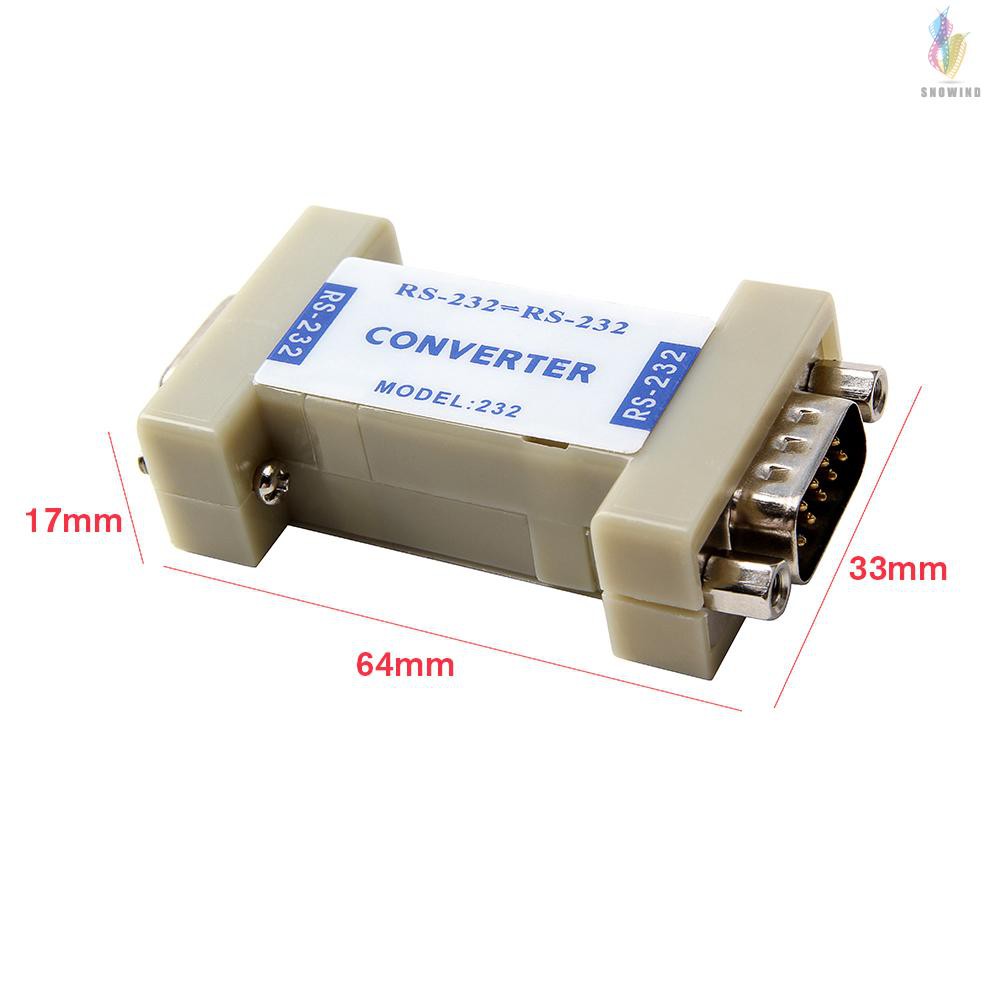

Item size: 6.4 * 3.3 * 1.7cm /2.52 * 1.3 * 0.67in(L * W * H)
Item weight: Approx.22.4g /0.79oz
Package weight: 26g /0.92oz
Package List:
1 * RS232 to RS232 photoelectric isolation converter
