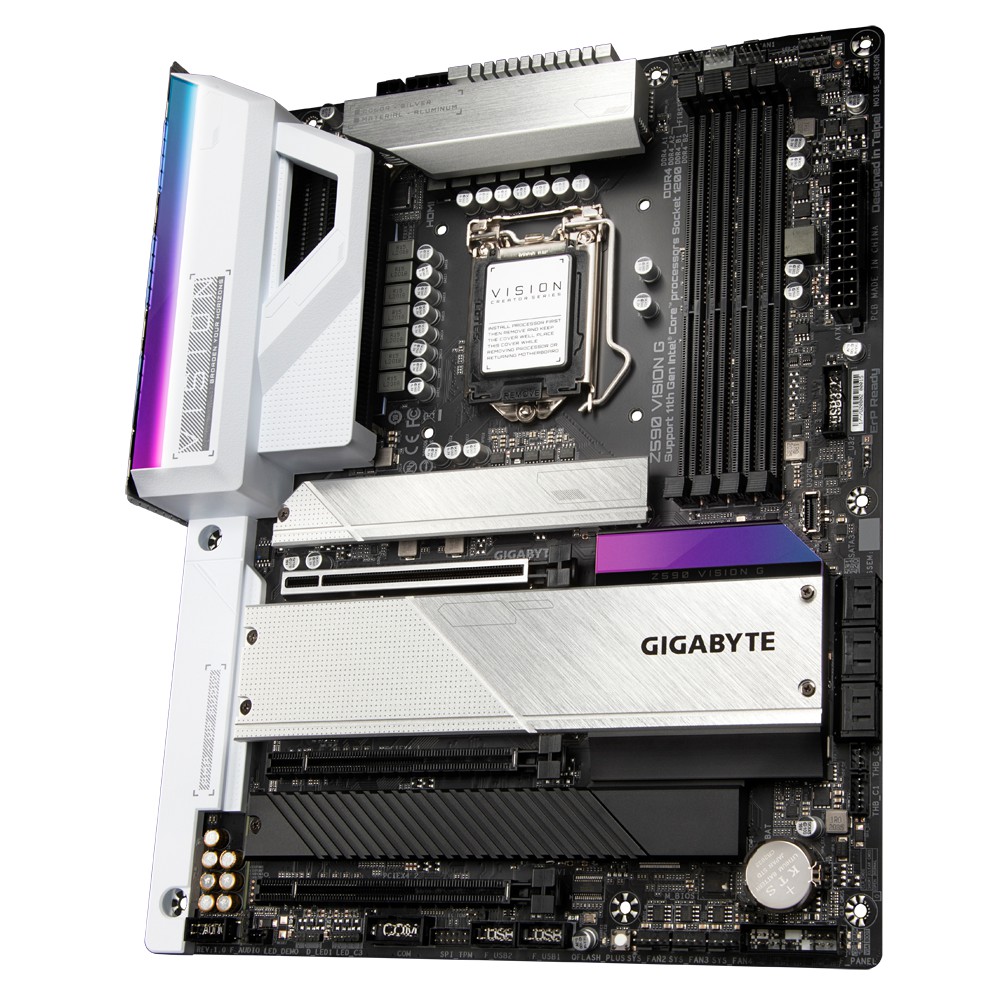

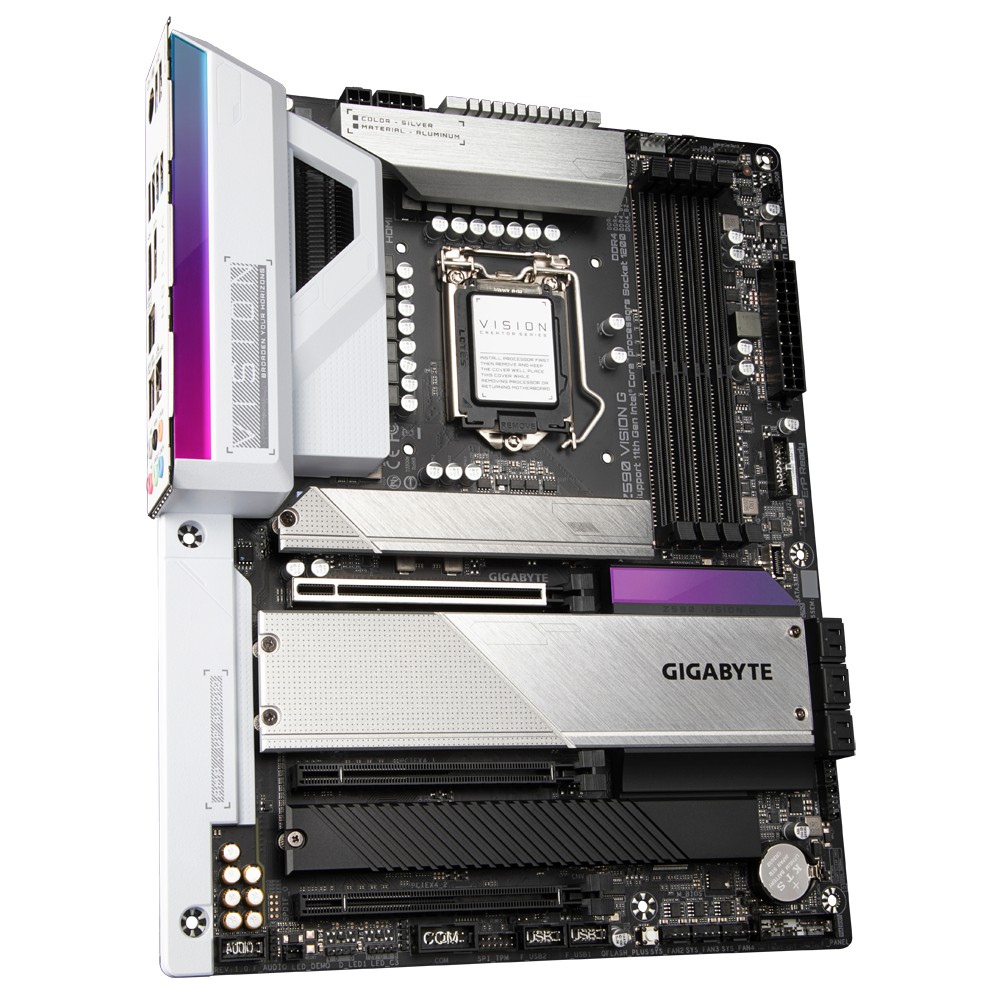

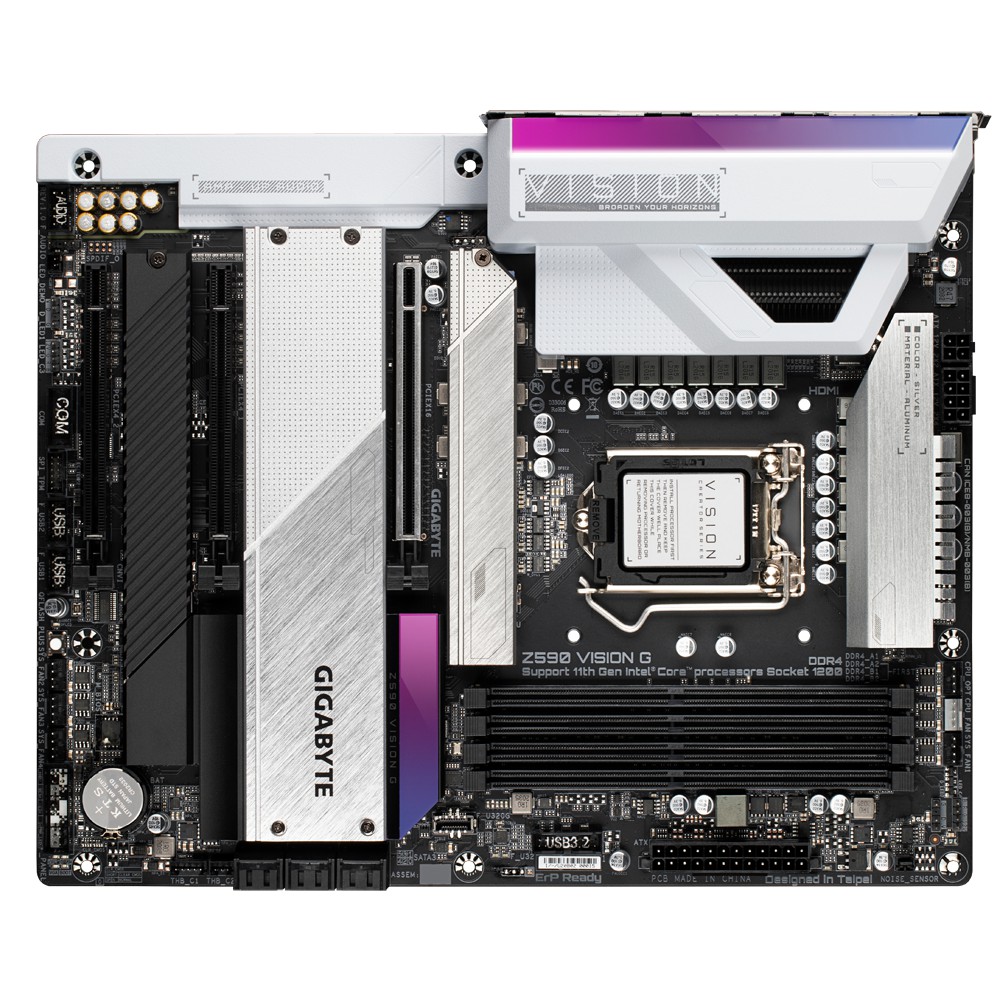

Bo Mạch Chủ Main Gigabyte Z590 Vision G
1 Đánh Giá
1 Đã Bán
58
6.450.000 đ
Xem sản phẩm trên ShopeeQuận Tân Phú, TP. Hồ Chí Minh
thứ năm 29/04/2021 lúc 09:39 CH
normal
Sản phẩm : Bo mạch chủ
Tên Hãng : GIGABYTE
Model : Z590 VISION G
CPU hỗ trợ : Intel
Chipset : Z590
RAM hỗ trợ :
4 x DDR4 DIMM, tối đa 128GB
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Khe cắm mở rộng :
1 x PCI Express x16 slot, running at x16 (PCIEX16)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
Ổ cứng hỗ trợ :
CPU :
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)
Chipset :
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Cổng kết nối (Internal) :
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
1 x noise detection header

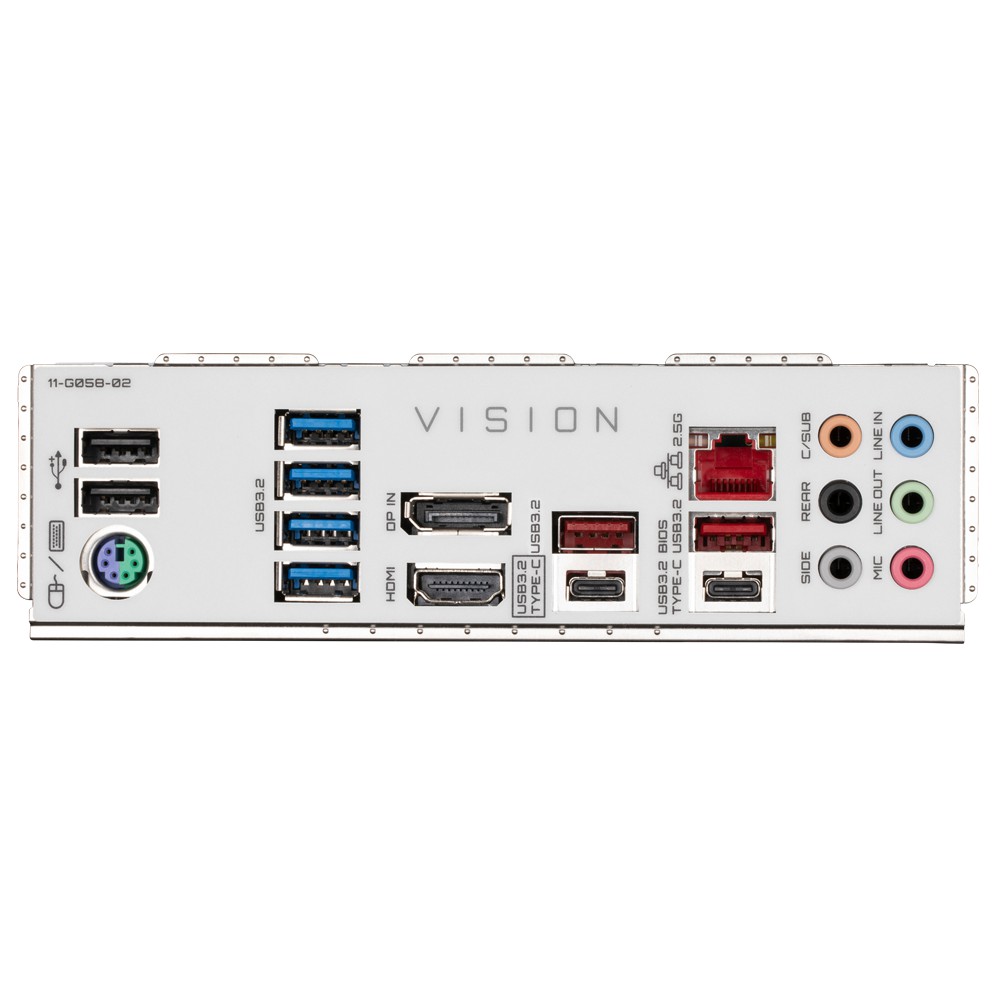

Cổng kết nối (Back Panel) :
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 x HDMI port
2 x USB 3.2 Gen2 Type-A ports
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
6 x audio jacks
LAN / Wireless
LAN: Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Kích cỡ :
ATX Form Factor
30.5 cm x 24.4cm
