Bộ Chuyển Đổi Usb 3.1 Sang Pci-E Lm902 Nvme Hdd
0 Đánh Giá
0 Đã Bán
22
574.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ sáu 30/04/2021 lúc 09:15 SA
Description:
100% brand new and high quality!
Supports TRIM to the SSD.
Integrates with USB Type-C multiplexer& configuration channel(CC)logic.
Complies with PCI Express Base Specification Revision 3.1a.
Complies with NVM Express 1.3.
Complies with USB3.1 Gen 1 and Gen 2 Specification,USB Mass Storage Class,Bulk-only Transport Specification(Revision 1.0).
Complies with USB Attached SCSI Protocol(UASP)Specification(Revision 4).
Supports USB Super-Speed/High-Speed/Full-Speed Operation.
Supports USB2.0/USB3.1 Gen 1/2 power saving mode.
Supports external SPI NVRAM for Vendor VID/PID of USB2.0/USB3.1 Gen 1/2 device controller.
Thirteen GPIOs for customization.
Provides hardware controlled PWMs.
Provides software utilities for downloading the upgraded firmware code under USB2.0/USB3.1 Gen1,2.
Design for Windows 7,Windows 10 and for MAC 10.10.5 or later version
Supports 25MHZ external crystal.
Supports 3.3V I/O.
Embedded 5V to 1.0V voltage regulator.
Embedded 5V to 3.3V linear voltage regulator(LD0).
Blue LED indicator, gentle and not glaring.
Cooling holes on both sides for added heat dissipation.
Specification:

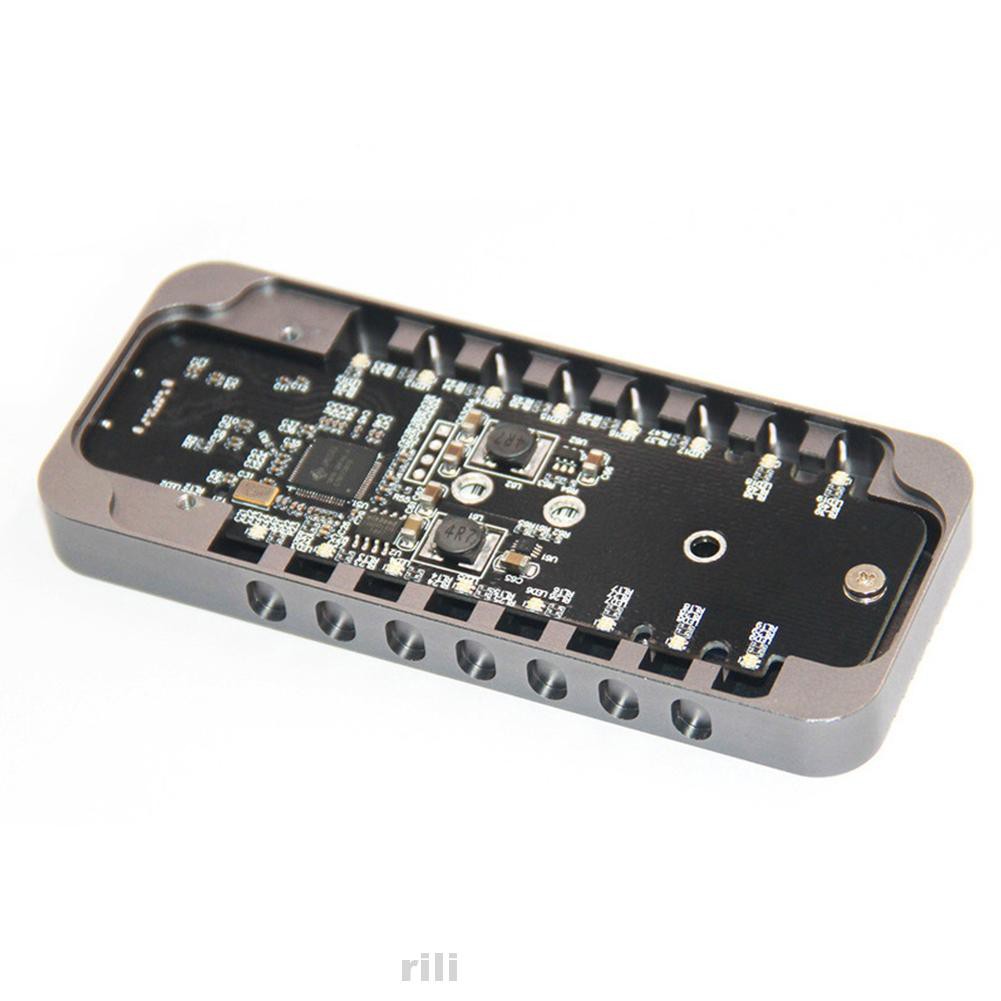

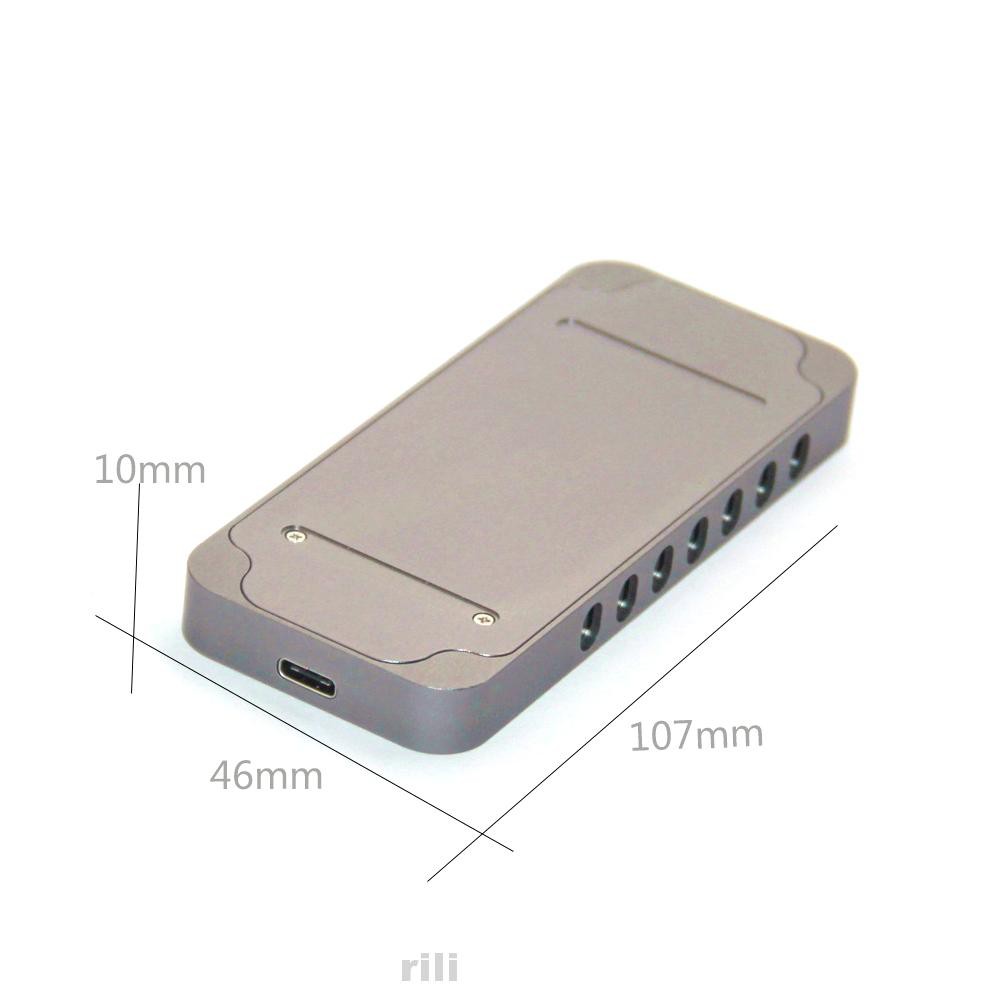

Name: USB3.1 Type C to PCI-E SSD M.2 NVME mobile hard disk box
Material: aluminum alloy
Color: carbon grey

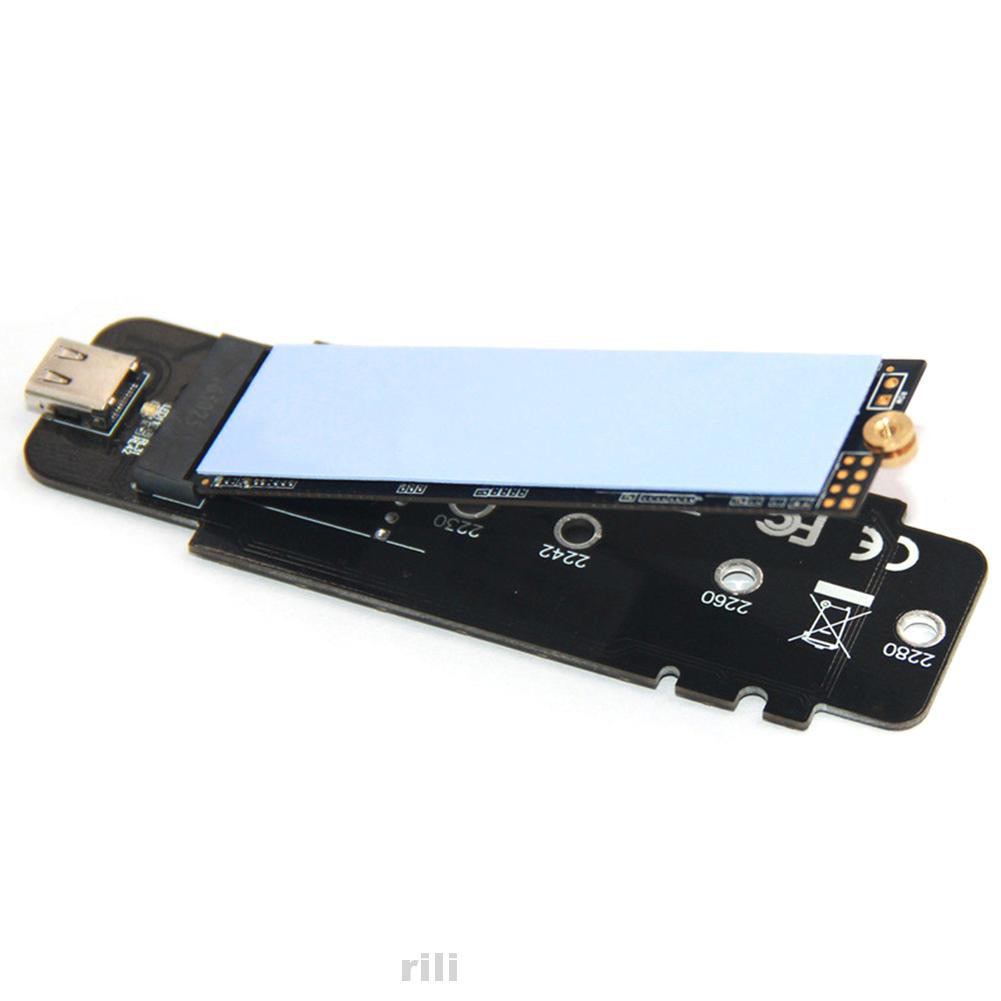

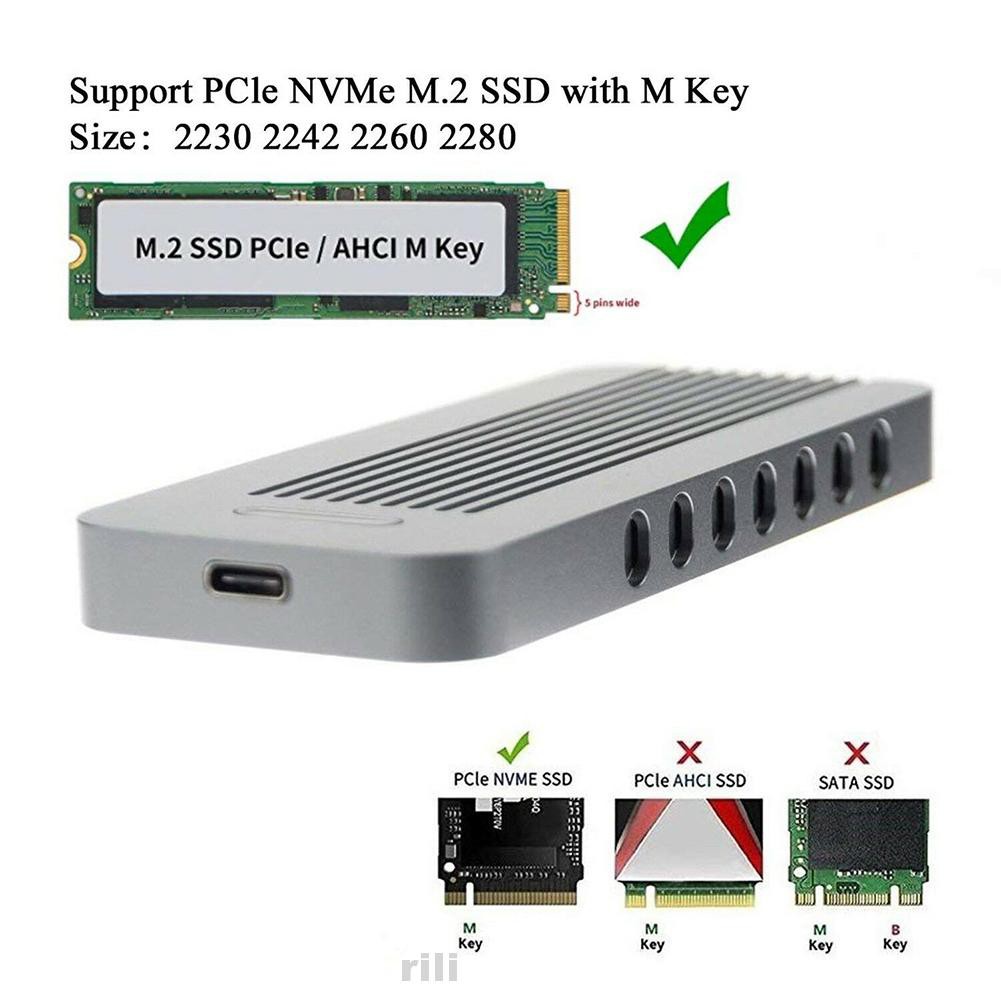

Built-in Interface: m-key M.2( Does not support SATA protocol M. 2 hard disk)
External Interface: T ype-c
Theoretical Speed: 10Gbps
Support System: WIN7/8/10, Linux, for Mac
Package:
1 pc x NVME Enclosure
1 pc x type-A To Type - Cable 30cm
1 pc x USB3.0 To Type - Cable 30cm
1 pc x Thermal Silica Film
1 pc x Anti-slip Gasket
1 pc x Phillips Screwdriver
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
#HDD #Enclosure #Type #C #USB3.1 #TO #PCI-E #LM902 #NVME #Aluminum #Alloy #Cooling #Hole #Desktop #PC #Drive #Hard #Disk
