1 Cặp Dây Cáp Quang Htb-Gs-03 A / B Gigabit 1000mbps
1 Đánh Giá
3 Đã Bán
50
298.100 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ bảy 17/07/2021 lúc 06:42 SA
Features:

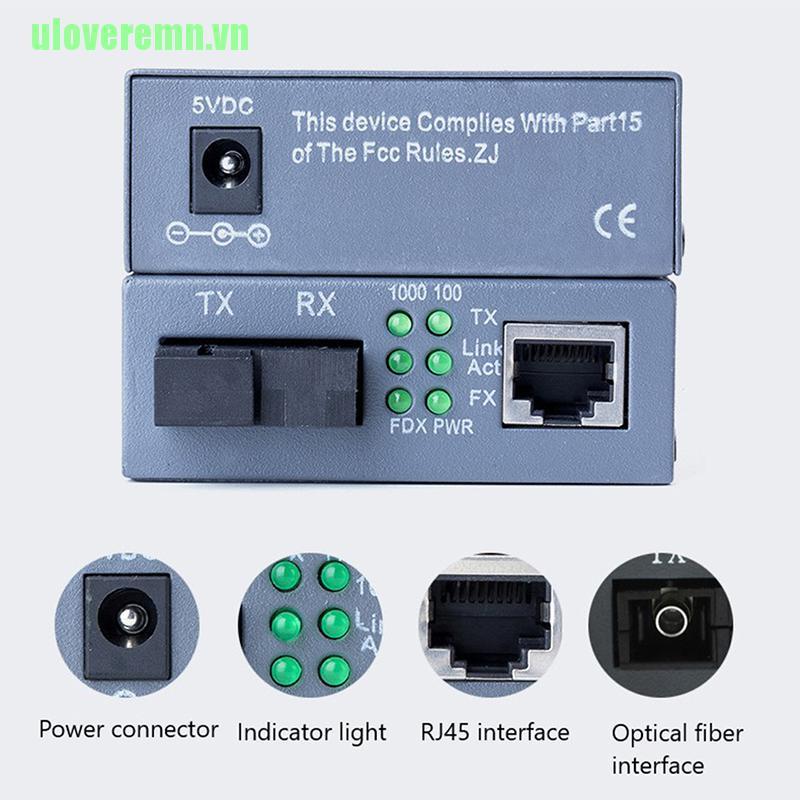

Provide one SC fiber connector and one UTP connector
Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/IEEE802.3u 100Base-FX,IEEE802.3z 1000Base-FX Standard.
Auto-detection of half/full duplex transfer mode for Tx port
Auto-negotiation of 10/100/1000Mbps rate and Auto-MDI/MDIX for Tx port
Provide switch configuration of half/full duplex transfer mode for Fx port
Extend fiber distance up to 20km for single-mode fiber
6 LED display for Power, FDX/Col, FX (Link/Act), TX (Link/Act), FX 1000, TX 100
Easy-to-view LED indicators provides status to easily monitor network activity
Specifications:
Standard：
IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX/FX Fast-Ethernet IEEE802.3z/ab
1000BASE-FX/TX 100M-Ethernet IEEE802.3x RJ-45 Port： Auto-MDI/MDIX
Fiber Port ：
Fiber Type ：SC Wavelength：1310/1550nm Send-Power： 20dBm(min.) 0dBm(max.)
Frequency Offset ±125,000bps (or ± 100ppm)
MTU： More than 9036 bytes

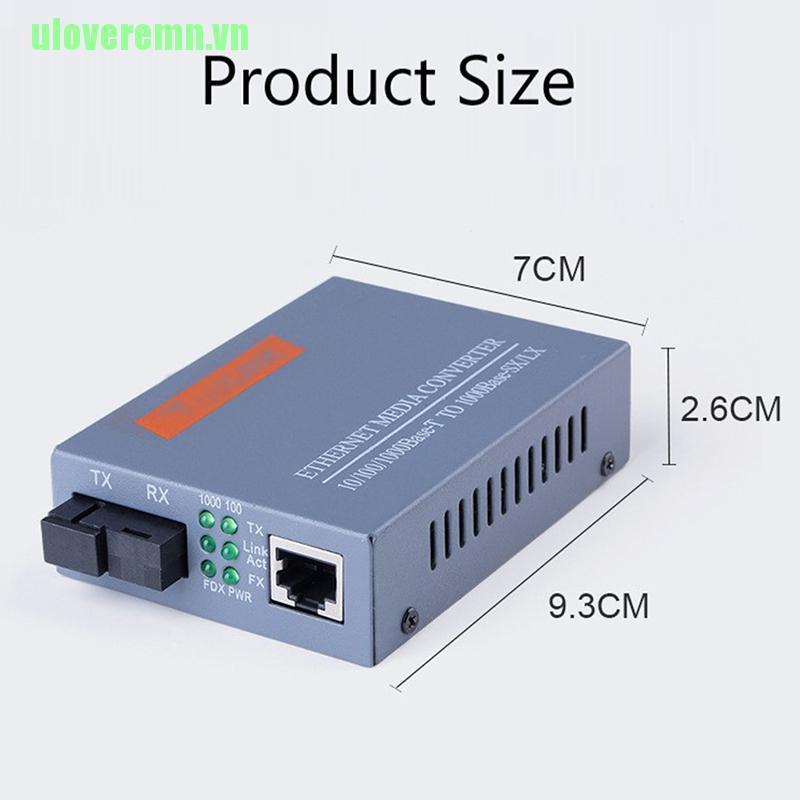

Dimensions(WxDxH) ：94x71x27mm (External power)

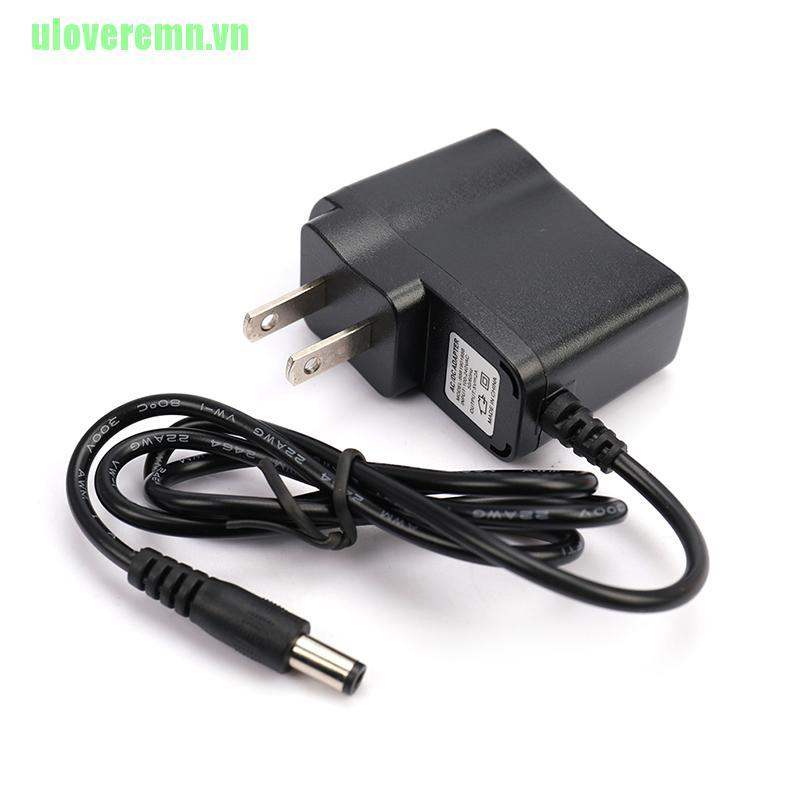

Input Voltage ：DC5V2A( External power input : AC100V-AC240V/50-60HZ )
OperationTemperature ：0°C~70°C
Store Temperature： -40°C~85°C
Humidity ：5%~95% non-condensing
Packet included

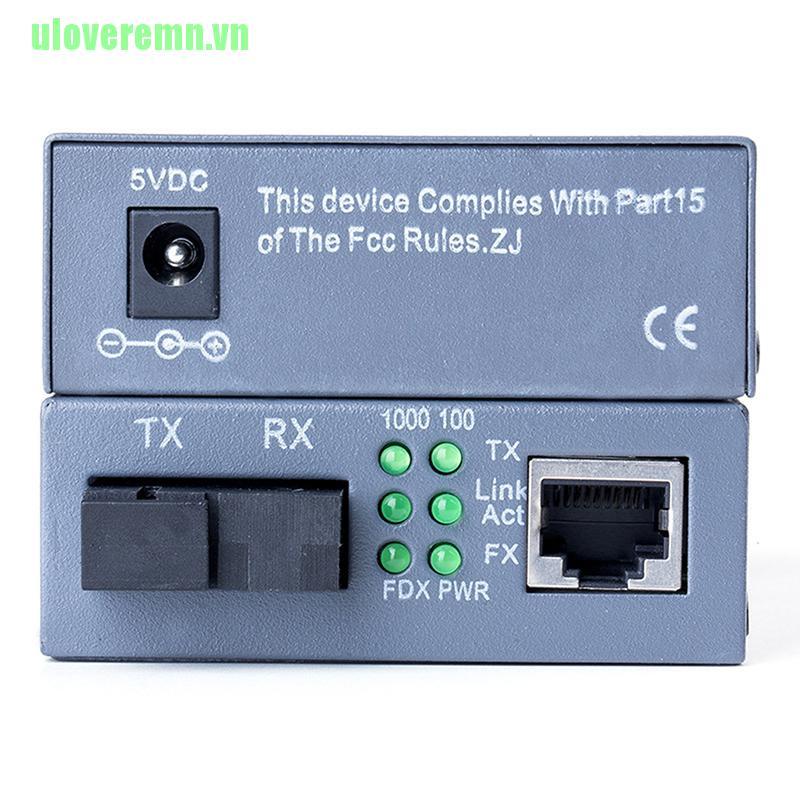

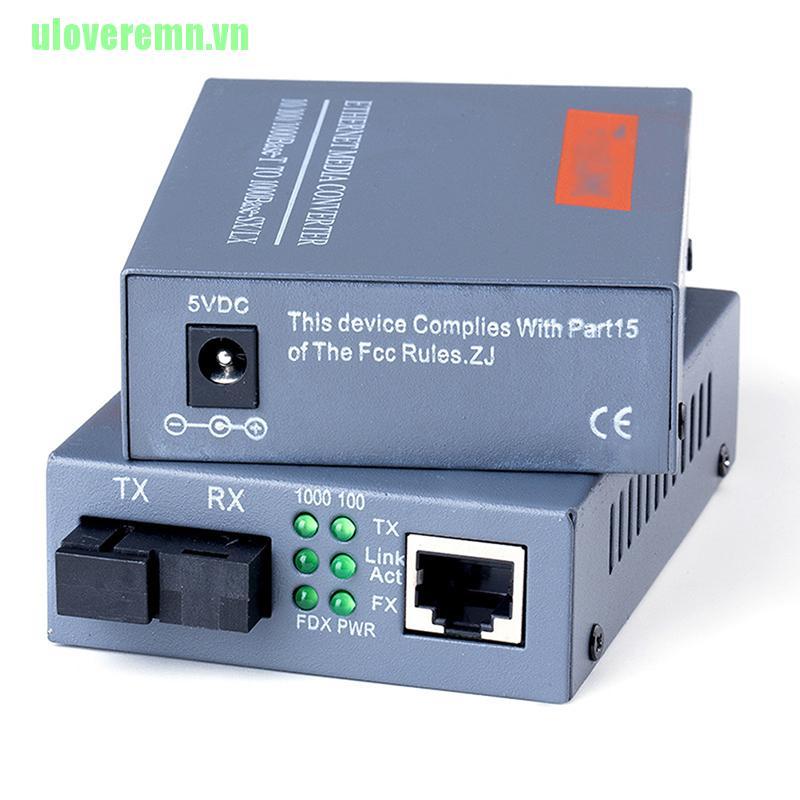

1 pair HTB-GS-03 A/B Gigabit Fiber Optical Media Converter
Provide one SC fiber connector and one UTP connector
Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/IEEE802.3u 100Base-FX,IEEE802.3z 1000Base-FX Standard.
Auto-detection of half/full duplex transfer mode for Tx port
Auto-negotiation of 10/100/1000Mbps rate and Auto-MDI/MDIX for Tx port
Provide switch configuration of half/full duplex transfer mode for Fx port
Extend fiber distance up to 20km for single-mode fiber
6 LED display for Power, FDX/Col, FX (Link/Act), TX (Link/Act), FX 1000, TX 100
Easy-to-view LED indicators provides status to easily monitor network activity
Specifications:
Standard：
IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX/FX Fast-Ethernet IEEE802.3z/ab
1000BASE-FX/TX 100M-Ethernet IEEE802.3x RJ-45 Port： Auto-MDI/MDIX
Fiber Port ：
Fiber Type ：SC Wavelength：1310/1550nm Send-Power： 20dBm(min.) 0dBm(max.)
Frequency Offset ±125,000bps (or ± 100ppm)
MTU： More than 9036 bytes
Dimensions(WxDxH) ：94x71x27mm (External power)
Input Voltage ：DC5V2A( External power input : AC100V-AC240V/50-60HZ )
OperationTemperature ：0°C~70°C
Store Temperature： -40°C~85°C
Humidity ：5%~95% non-condensing
Packet included
1 pair HTB-GS-03 A/B Gigabit Fiber Optical Media Converter
